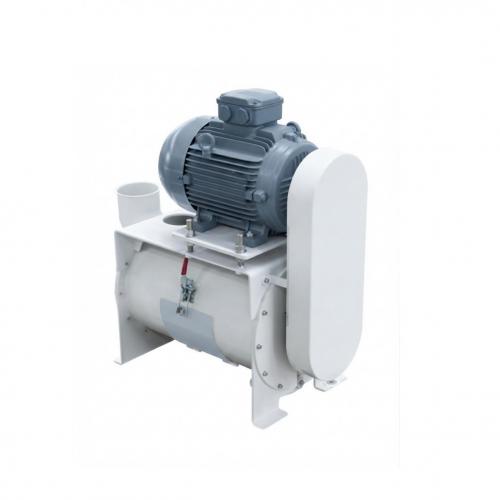

Drum Detacher DDTS
Application
It is used at the outlet of reduction passages in the milling process to break up compacted flour particles.
Features
Its cylindrical sheet-steel construction includes mounting plates for floor or ceiling installation, and a high-speed rotor with inclined bladed bars supported by ball bearings. Internal impact plates enhance the disintegration effect, while a tightly sealed inspection door ensures safe and easy access. The machine improves downstream sifting efficiency and contributes to consistent flour texture.
Technical Parameters
| Model | Rotational Speed (rpm) | Power (kW) | Impeller Speed (rpm) | Capacity (t/h) | Dimensions (L×W×H) (mm) |
|---|---|---|---|---|---|
| DDTS 3 | 960 | 3 | 1430 | 1.3–1.6 | 855×365×740 |
| DDTS 4 | 960 | 4 | 1440 | 1.7–2.1 | 855×365×760 |
| DDTS 5 | 960 | 5,5 | 1440 | 1.8–2.2 | 855×365×810 |
