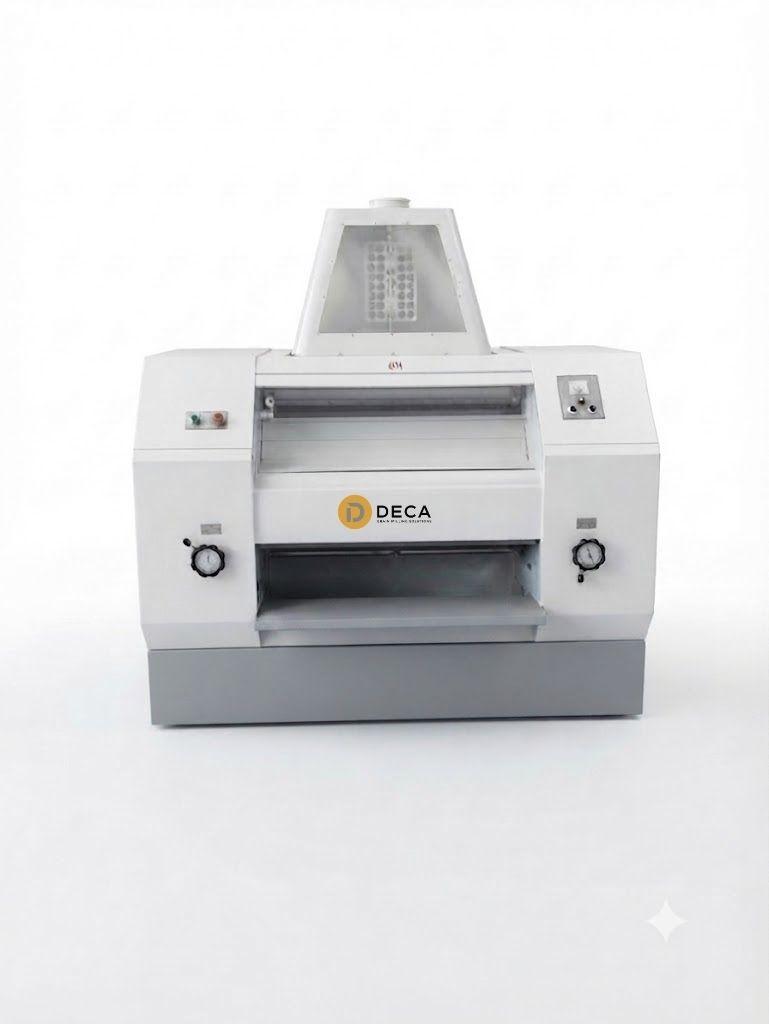

Roller Mill DSRL
Product Application
Used for the grinding of grains; adopts a pneumatic servo feeding control method with high sensitivity and good continuity.
Product Features
One-piece casting or steel plate welded base, providing excellent vibration damping and noise reduction performance.
Independent roller gap micro-adjustment mechanism.
Independent pneumatic cylinder clutch mechanism.
Drive mechanism with spring tensioning, guaranteeing a stable speed ratio and service life of the drive belt.
Grinding roll milling chamber suction design, solving the flour-spraying problem.
Technical Parameters
|
Model |
Dimensions (mm) |
Weight (kg) |
|---|---|---|
|
DSRL 125x30x2 |
2060x1676x2005 |
4650 |
|
DSRL 100x30x2 |
1810x1676x2005 |
3950 |
|
DSRL 125x25x2 |
2060x1526x1955 |
3900 |
|
DSRL 100x25x2 |
1810x1526x1955 |
3250 |
|
DSRL 80x25x2 |
1610x1526x1955 |
2850 |
